Manufacturing equipment

Roll forming machines

Beyond steel supply, BWL sources complete roll-forming lines — glazed tile, trapezoidal, corrugated, double-layer and arch-span — so you can produce roofing and cladding sheet in-house.

Production lines to turn steel coil into finished roofing and cladding profiles.05
Glazed Tile Roll Forming MachineBWL

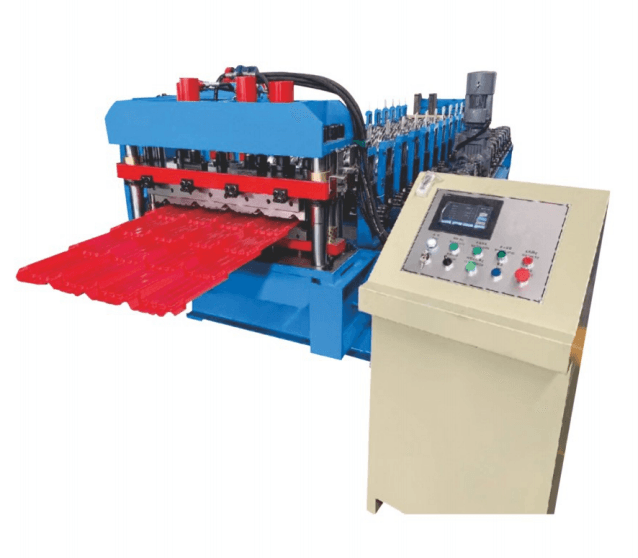

Glazed Tile Roll Forming Machine

Step-tile roofing, formed in one continuous pass

Roll-forms colour-coated or galvanized coil into glazed step-tile roof panels with crisp, repeating tile steps — a premium ceramic-tile look at production speed.

Profile
Glazed step tile
Effective width
1000 / 1200 / 1250 mm
Feed material
Colour-coated / GI coil
Control
PLC + hydraulic cut
Sheet profiles produced

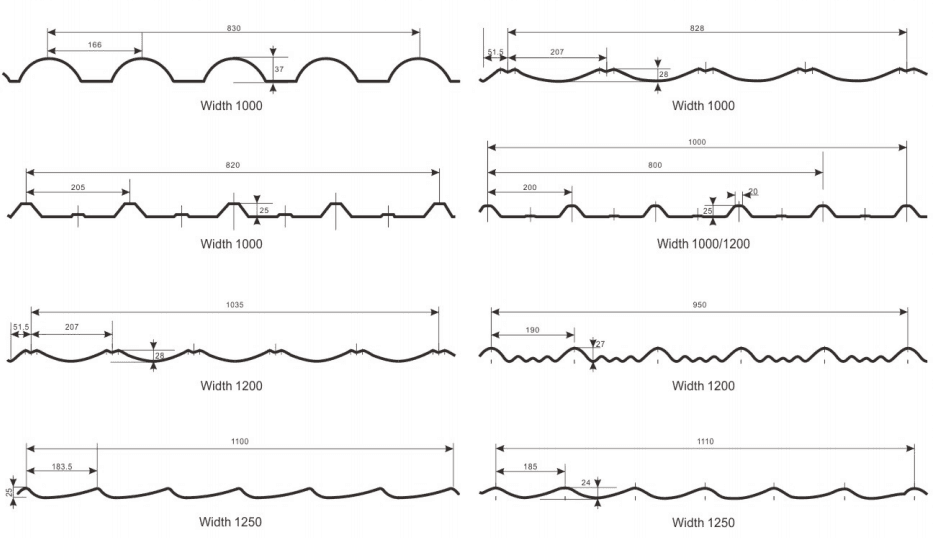

Glazed Tile Roll Forming Machine — Sheet profiles produced
Request a quote
Roofing Sheet Roll Forming MachineBWL

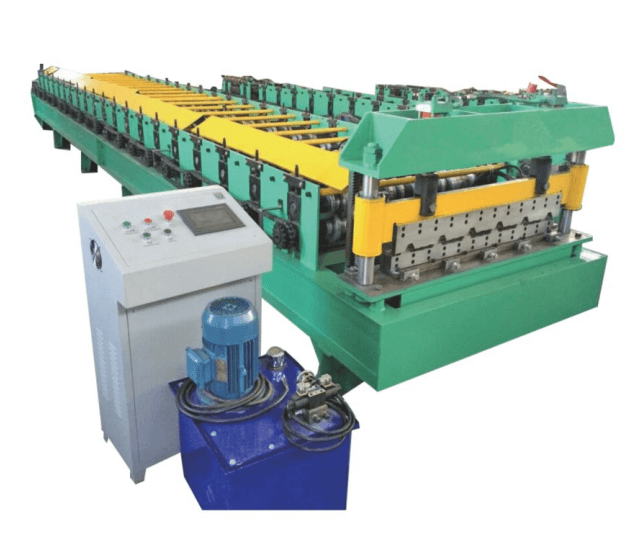

Roofing Sheet Roll Forming Machine

Trapezoidal (IBR) roof & wall sheet

Forms trapezoidal (IBR-style) roofing and cladding sheet — the most common structural roof profile — from coloured or galvanized steel coil.

Profile
Trapezoidal / tile
Effective width
1000 / 1200 / 1250 mm
Feed material
Colour-coated / GI coil
Control
PLC + hydraulic cut
Sheet profiles produced

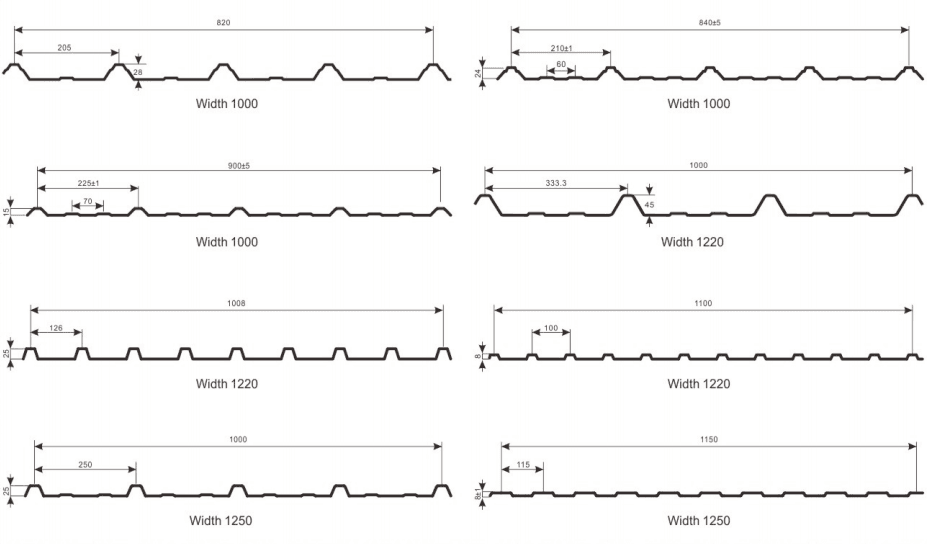

Roofing Sheet Roll Forming Machine — Sheet profiles produced
Request a quote
Corrugated Sheet Roll Forming MachineBWL

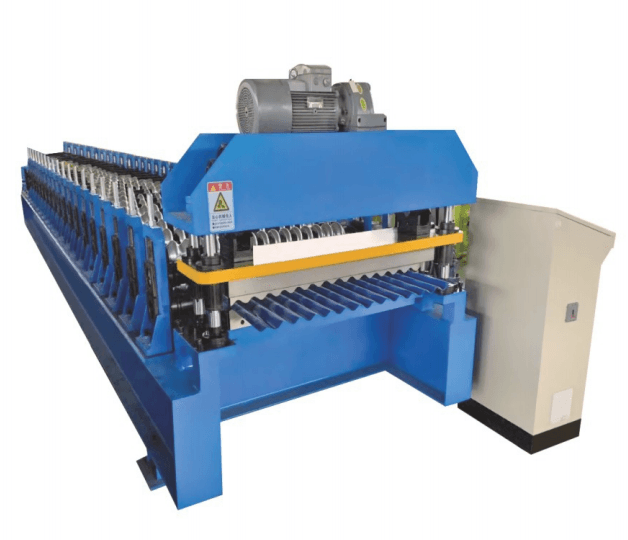

Corrugated Sheet Roll Forming Machine

Classic wave / corrugated roofing sheet

Roll-forms steel coil into the classic sinusoidal corrugated roofing and wall sheet used across industrial, agricultural and residential building.

Profile
Corrugated (wave)
Effective width
940 / 1000 / 1200 / 1250 mm
Feed material
Colour-coated / GI coil
Control
PLC + hydraulic cut
Sheet profiles produced

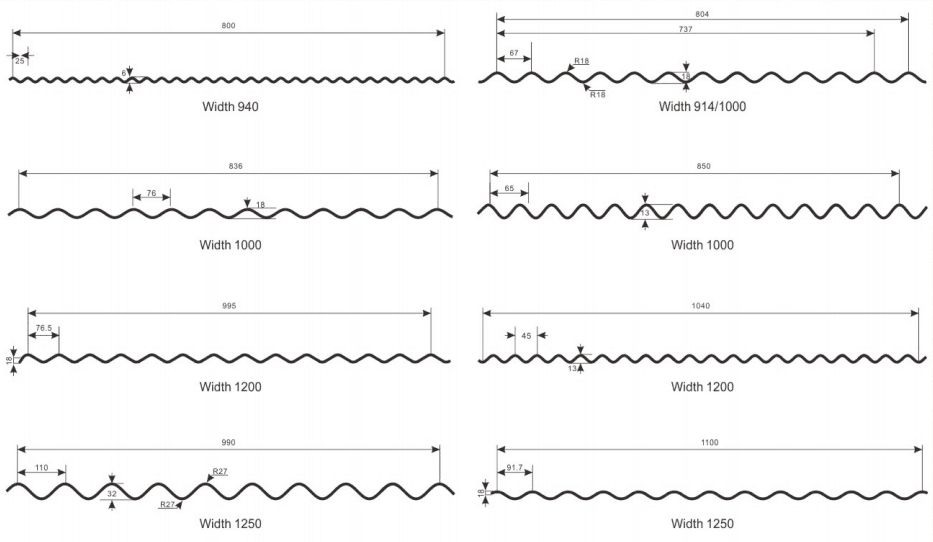

Corrugated Sheet Roll Forming Machine — Sheet profiles produced
Request a quote
Double Layer Roll Forming MachineBWL

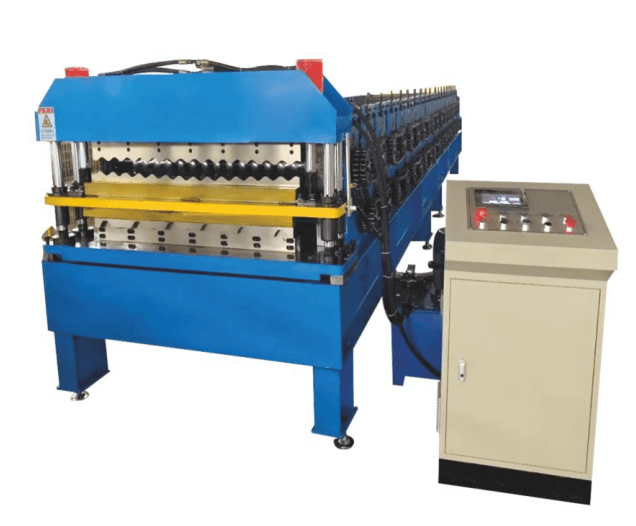

Double Layer Roll Forming Machine

Two roofing profiles from one machine

A space-saving line that roll-forms two different sheet profiles — for example trapezoidal and corrugated — from a single stacked machine with upper and lower forming decks.

Configuration
Two forming decks
Profiles
Trapezoidal + corrugated
Effective width
940 / 1000 / 1200 mm
Control
PLC + hydraulic cut

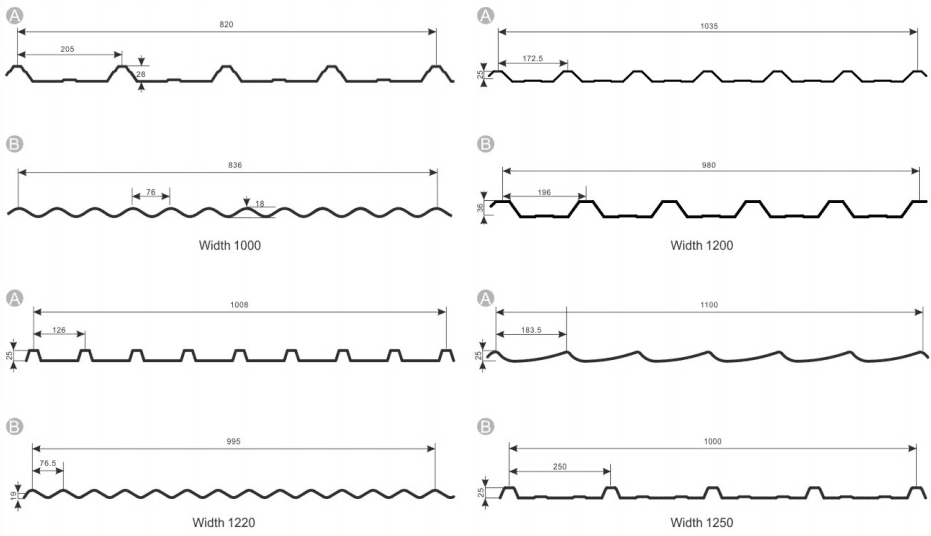

Sheet profiles produced
Double Layer Roll Forming Machine — Sheet profiles produced
Request a quote
BH-600-305 Arch Sheet Roll Forming MachineBWL

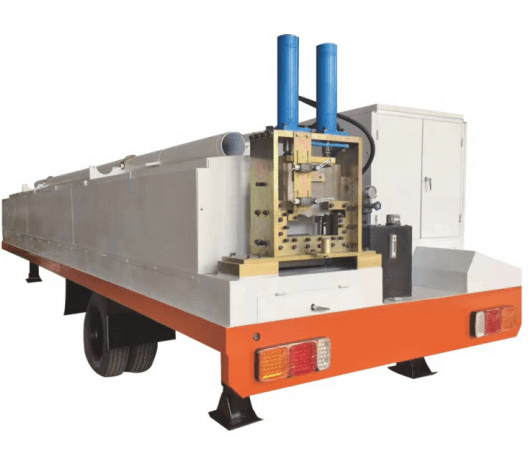

BH-600-305 Arch Sheet Roll Forming Machine

BH-600-305

Self-supporting curved (K-span) roof sheet

Forms and curves wide steel sheet into self-supporting arched roof panels (K-span) — ideal for warehouses, hangars, stores and column-free arch buildings.

Model
BH-600-305
Type
Self-supporting arch (K-span)
Rib section
305 mm
Control
Hydraulic + PLC

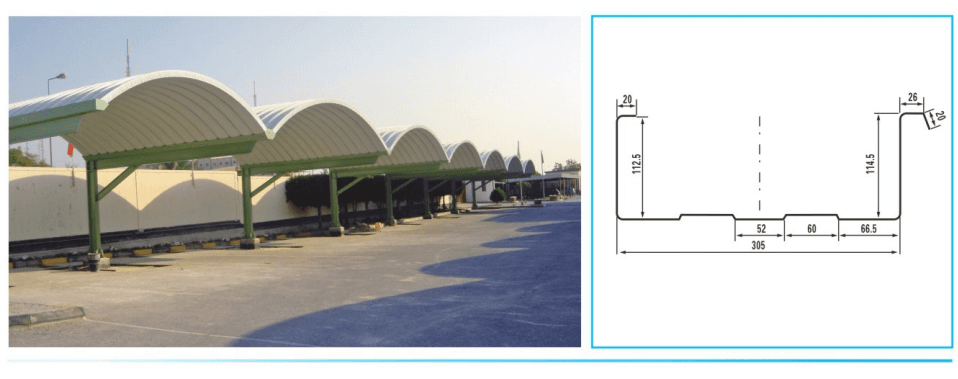

Sheet profiles produced
BH-600-305 Arch Sheet Roll Forming Machine — Sheet profiles produced
Request a quote
Let's build

Ready to price your next tonnage?

Tell us the product, grade and quantity you need. Our team will come back with competitive, factory-direct pricing and a logistics plan.
